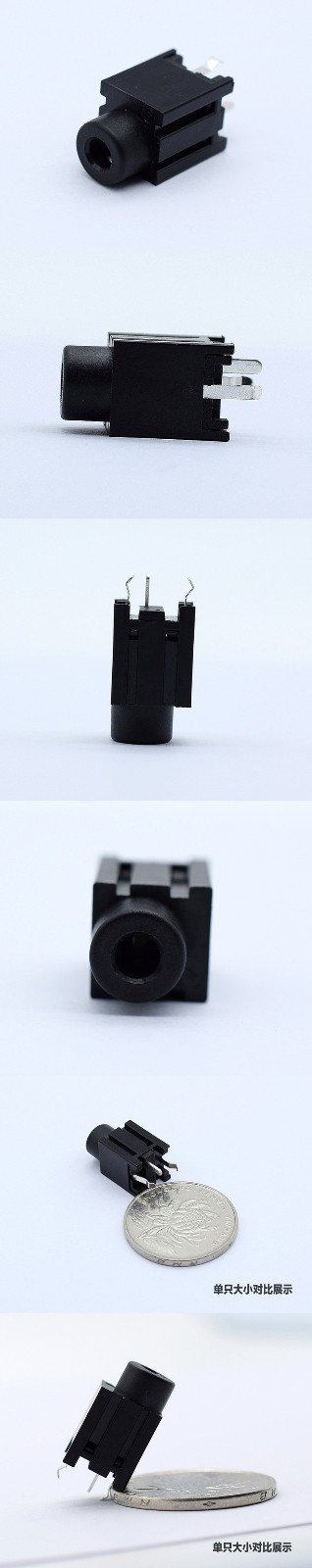

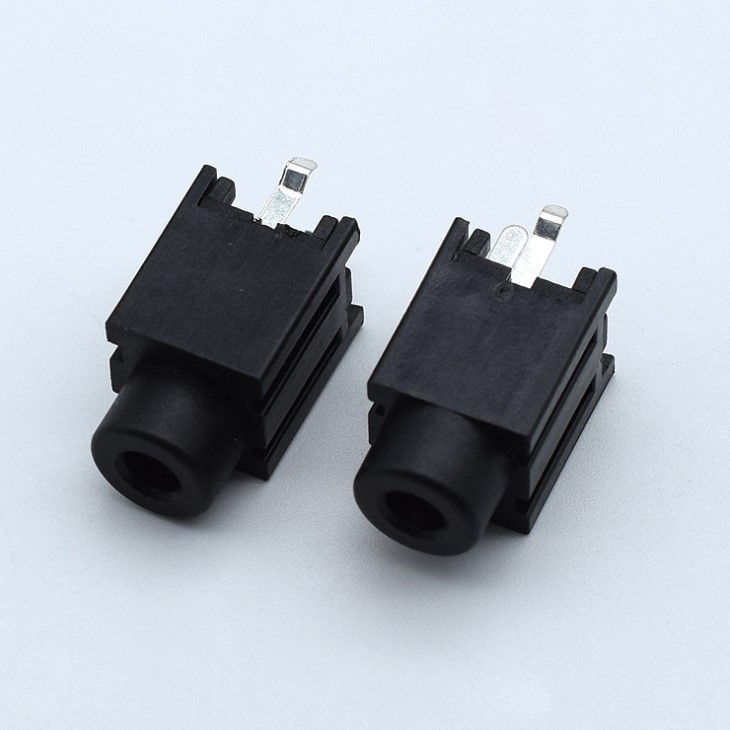

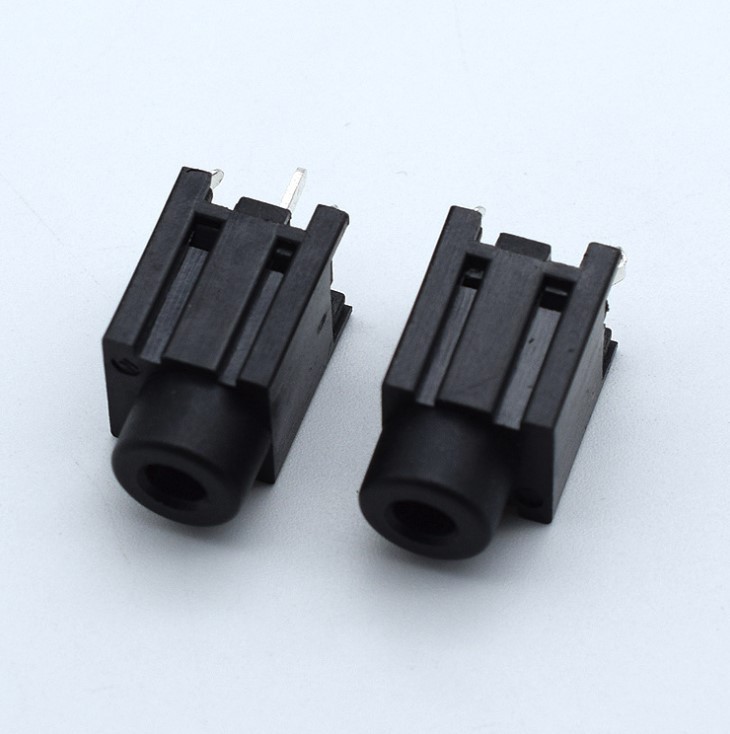

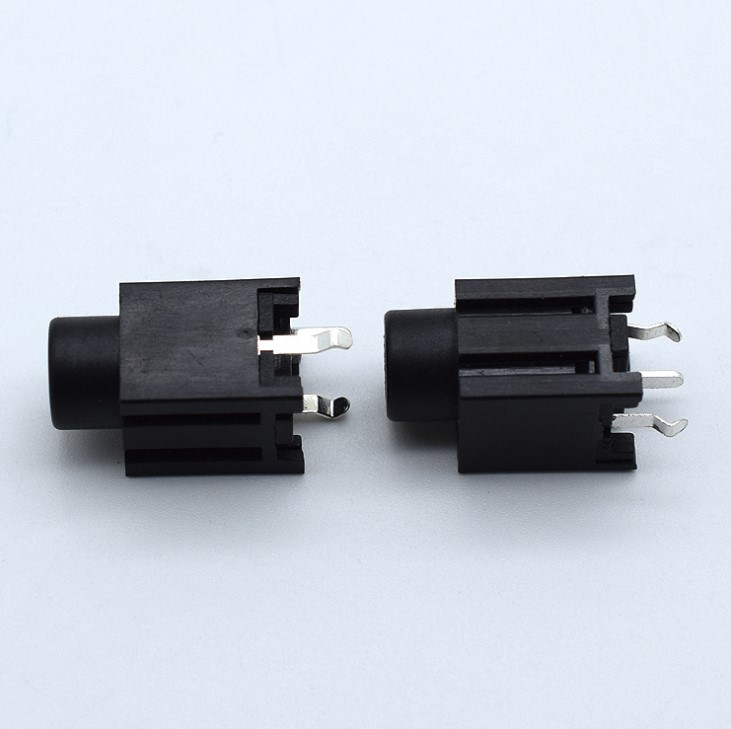

audio jack headphone jack PJ342-3P
Rating DC 50V 0.5A
Contact resistance 50mΩ Max
Insulation Resistance 100MΩ Min
Withstand Voltage AC 250V 1Min
Soldering Temper 260±5°c5s
Mechanical Life 5,000 times
Electrical Life 5,000 times
Ambient Temper Used -25°c to 85°c
Ambient Humidity Used 85%RH
Operating Force 3-30N
